enabling upload QoS = no inet

[jasonmariah]

Hi,
LOVE this software, massive thanks for creating this lifesaver.

I use ip based quotas, and I'm trying to start using QoS and ACC.
QoS download works fine, but upload QoS immediately shuts off my internet. Settings on upload QoS are stock, no changes. Uplink and downlink speeds set at 90% of real speeds.
version is 1.5.11
WNDR3700v2

Any ideas whats going on?
Thanks
Jason

[pbix]

Post screen shots of your QoS pages while the problem is happening. I use this exact router without any problems.

[jasonmariah]

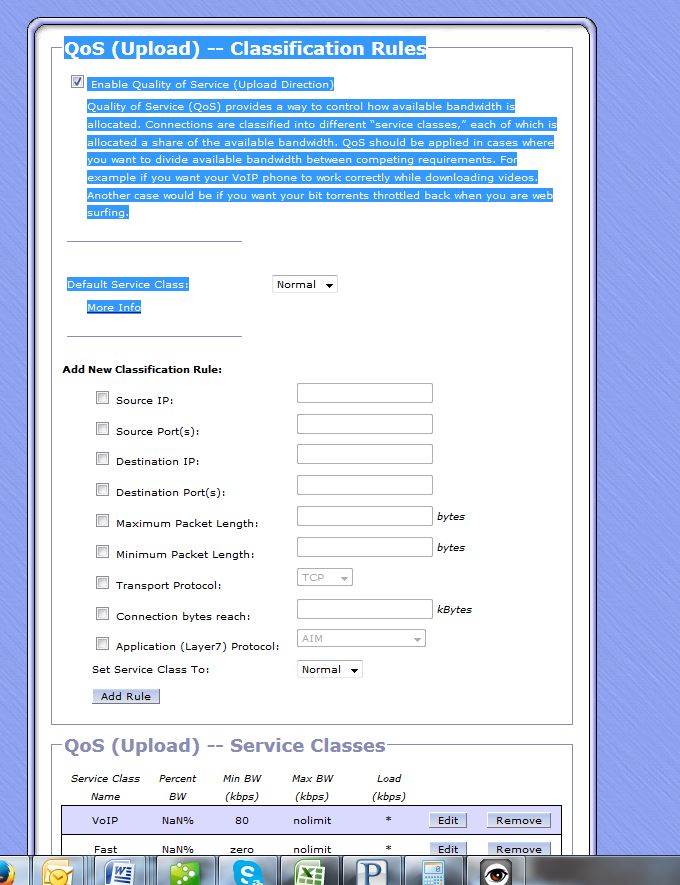

qos upload.JPG (106.84 KiB) Viewed 7469 times

[jasonmariah]

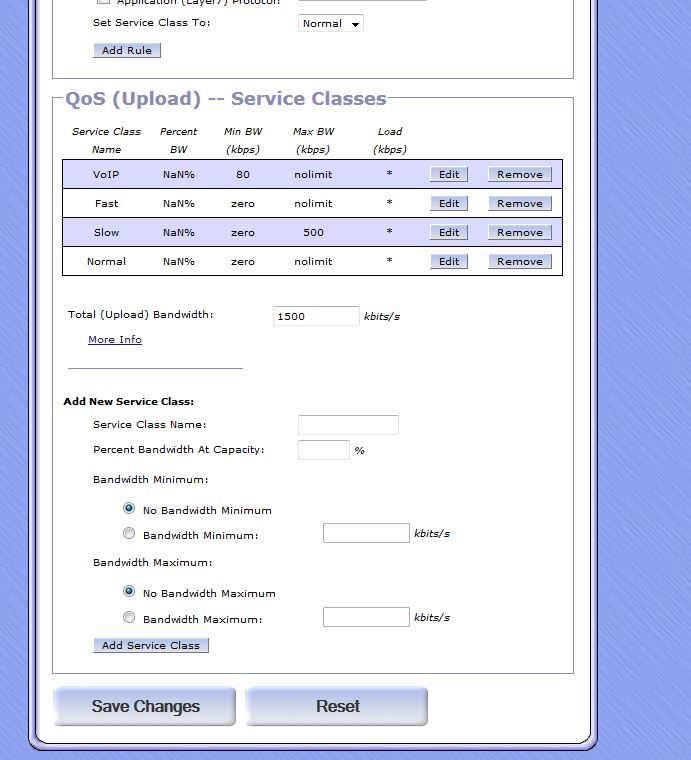

qos upload2.JPG (79.64 KiB) Viewed 7469 times

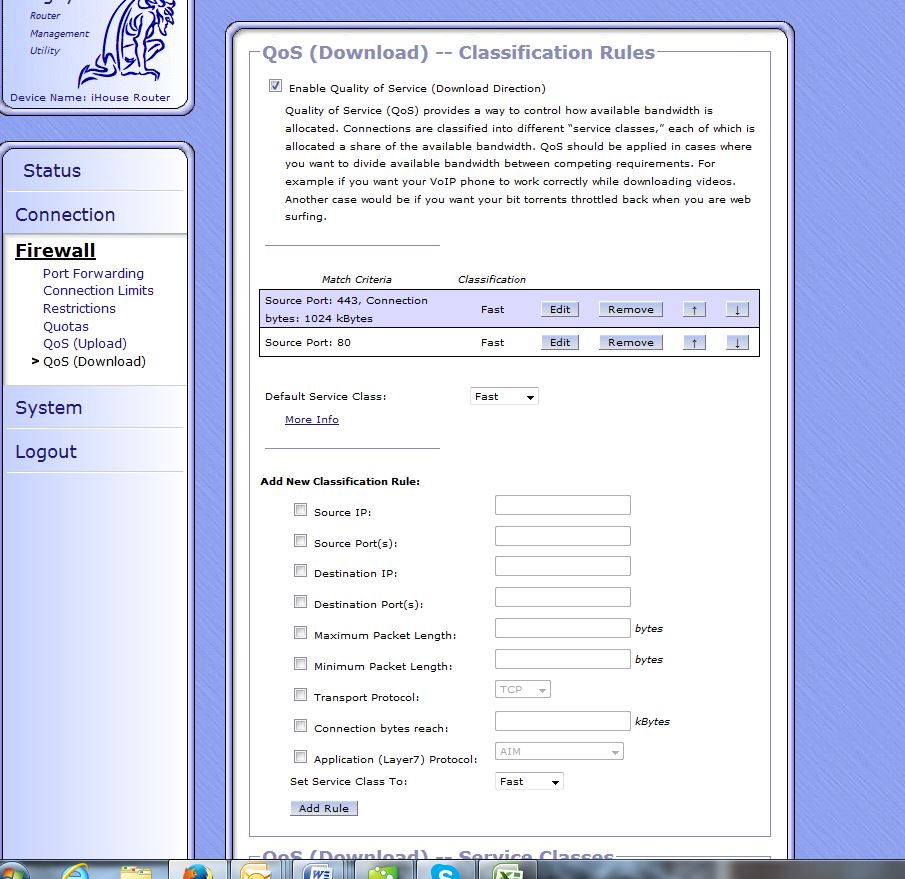

qos download.JPG (133.84 KiB) Viewed 7469 times

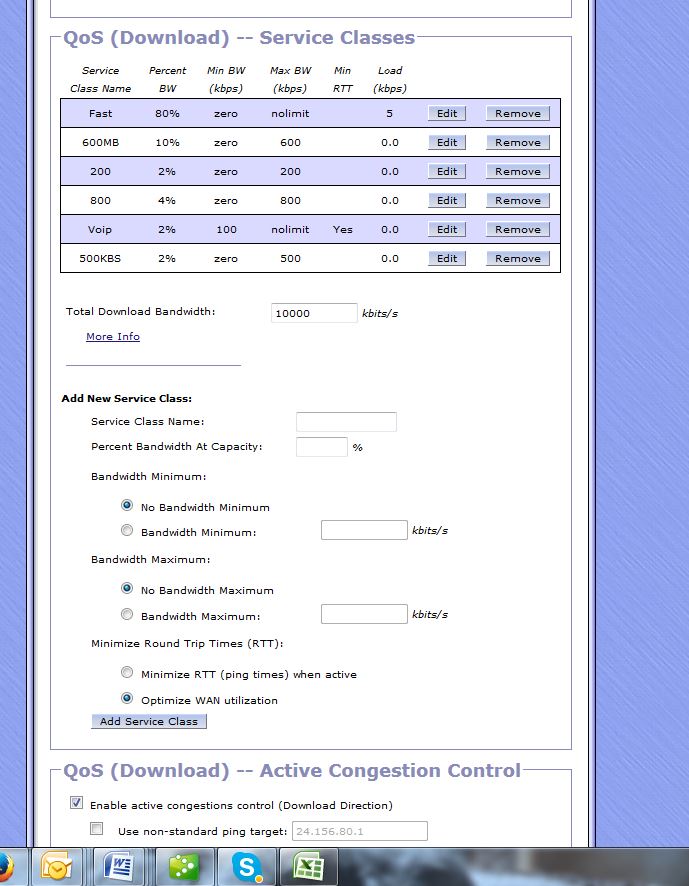

qos download2.JPG (100.87 KiB) Viewed 7469 times

[jasonmariah]

qos download3.JPG (80.14 KiB) Viewed 7469 times

[pbix]

log into your router and run the following then post the output.

/etc/init.d/qos_gargoyle restart

[jasonmariah]

excuse my ignorance, ... Where does one enter this command? Browser window? SSH, telnet?
thx

[pbix]

http://wiki.openwrt.org/doc/howto/user.beginner.cli

[jasonmariah]

Thanks for the help, got putty and got this output...

root@iHouse Router:~# /etc/init.d/qos_gargoyle restart
+ awk {print $5}
+ grep hfsc
+ tc qdisc show
+ tc qdisc del dev imq0 root
+ delete_chain_from_table mangle qos_egress
+ delete_chain_from_table mangle qos_ingress
+ set +x
+ tc class add dev imq0 parent 1:1 classid 1:2 hfsc ls m2 800Mbit
+ tc qdisc add dev imq0 parent 1:2 handle 2:1 sfq headdrop limit 60 divisor 256
+ tc filter add dev imq0 parent 1:0 prio 2 protocol ip handle 0x200 fw flowid 1:2
+ tc filter add dev imq0 parent 2: handle 1 flow divisor 256 map key dst and 0xff
+ set +x
+ tc class add dev imq0 parent 1:1 classid 1:3 hfsc ls m2 100Mbit ul m2 600kbit
+ tc qdisc add dev imq0 parent 1:3 handle 3:1 sfq headdrop limit 11 divisor 256
+ tc filter add dev imq0 parent 1:0 prio 3 protocol ip handle 0x300 fw flowid 1:3
+ tc filter add dev imq0 parent 3: handle 1 flow divisor 256 map key dst and 0xff
+ set +x
+ tc class add dev imq0 parent 1:1 classid 1:4 hfsc ls m2 20Mbit ul m2 200kbit
+ tc qdisc add dev imq0 parent 1:4 handle 4:1 sfq headdrop limit 5 divisor 256
+ tc filter add dev imq0 parent 1:0 prio 4 protocol ip handle 0x400 fw flowid 1:4
+ tc filter add dev imq0 parent 4: handle 1 flow divisor 256 map key dst and 0xff
+ set +x
+ tc class add dev imq0 parent 1:1 classid 1:5 hfsc ls m2 40Mbit ul m2 800kbit
+ tc qdisc add dev imq0 parent 1:5 handle 5:1 sfq headdrop limit 15 divisor 256
+ tc filter add dev imq0 parent 1:0 prio 5 protocol ip handle 0x500 fw flowid 1:5
+ tc filter add dev imq0 parent 5: handle 1 flow divisor 256 map key dst and 0xff
+ set +x
+ tc class add dev imq0 parent 1:1 classid 1:6 hfsc rt m1 200kbit d 20ms m2 100kbit ls m1 20Mb it d 20ms m2 20Mbit
+ tc qdisc add dev imq0 parent 1:6 handle 6:1 sfq headdrop limit 60 divisor 256
+ tc filter add dev imq0 parent 1:0 prio 6 protocol ip handle 0x600 fw flowid 1:6
+ tc filter add dev imq0 parent 6: handle 1 flow divisor 256 map key dst and 0xff
+ set +x
+ tc class add dev imq0 parent 1:1 classid 1:7 hfsc ls m2 20Mbit ul m2 500kbit
+ tc qdisc add dev imq0 parent 1:7 handle 7:1 sfq headdrop limit 9 divisor 256
+ tc filter add dev imq0 parent 1:0 prio 7 protocol ip handle 0x700 fw flowid 1:7
+ tc filter add dev imq0 parent 7: handle 1 flow divisor 256 map key dst and 0xff
+ set +x
+ tc qdisc change dev imq0 root handle 1:0 hfsc default 2
+ iptables -t mangle -N qos_ingress
+ iptables -t mangle -A FORWARD -i eth1 -j qos_ingress
+ iptables -t mangle -A INPUT -i eth1 -j qos_ingress
+ set +x
+ iptables -t mangle -I qos_ingress -p tcp --sport 443 -m connbytes --connbytes 1048576: --con nbytes-dir both --connbytes-mode bytes -j MARK --set-mark 0x200
+ iptables -t mangle -I qos_ingress -p udp --sport 443 -m connbytes --connbytes 1048576: --con nbytes-dir both --connbytes-mode bytes -j MARK --set-mark 0x200
+ set +x
+ iptables -t mangle -I qos_ingress -p tcp --sport 80 -j MARK --set-mark 0x200
+ iptables -t mangle -I qos_ingress -p udp --sport 80 -j MARK --set-mark 0x200
+ set +x
+ iptables -t mangle -I qos_ingress -j MARK --set-mark 0x200
+ iptables -t mangle -I qos_ingress -m mark ! --mark 0x0 -j RETURN
+ iptables -t mangle -I qos_ingress -m mark ! --mark 0x0 -j CONNMARK --save-mark --mask 0x7F00
+ iptables -t mangle -I qos_ingress -j IMQ --todev 0
+ iptables -t mangle -A qos_ingress -j CONNMARK --save-mark --mask 0x7F00
+ set +x
root@iHouse Router:~# root@iHouse Router:~# /etc/init.d/qos_gargoyle restart

[pbix]

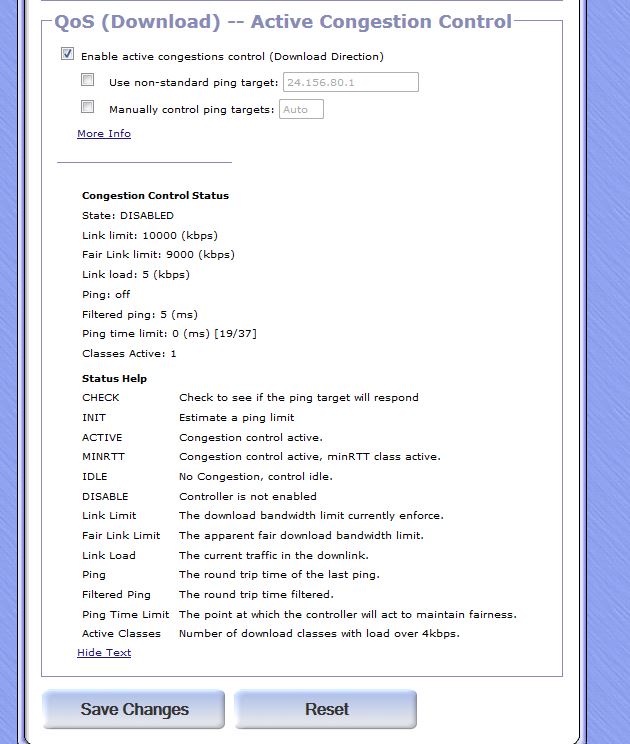

Your above web page screen shots show that you have ACC enabled. I can see a check mark there. But below the check mark I see that that ACC state is listed as DISABLED. Something is not right. Are you sure you pressed save changes at the bottom of the page before taking this screen shot?

The output from the script you just ran does not show the ACC starting which also indicates that it is not enabled.

What happens in the status section when you press the save changes button at the bottom?
