This is my first post here, i'm sorry if i will miss something or i will make some other mistakes
I'm using TL-WR1043ND v1.8. I installed Gargoyle stable 1.4.4. after freezing of original firmware after few days of router working (same problem with two different routers).
I contacted with TP-Link support, they are very helpfully and very professional i must say, i very like it, but still no solution for me (it must be problem with all my specific configuration).

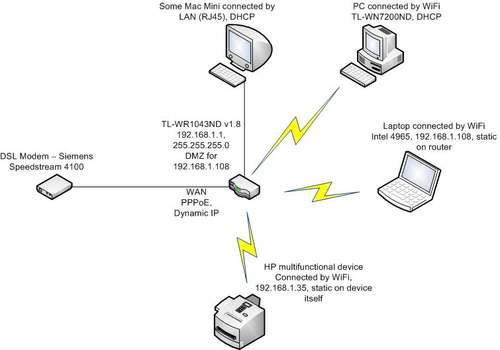

My connection is PPPoE connected by WAN. I'm using wireless AP mode, 802.11 b/g, WPA-PSK, channel 11. I setup static IP for my computer (192.168.1.108) which is connected by wifi (intel 4965). I setup DMZ for this IP. I also configure DDNS which is working well (no-ip). On my computer there is workin some Apache web server and simple web. The problem is, it do not work when i try to load it using external IP, or domain name (that is pointing to it).
When i try to connect with it directly from the router (i login with ssh, i use telnet on port 80) there is:
Code: Select all
telnet: cannot connect to remote host (78.xx.234.xxx): Connection refusedFrom outside world, DMZ works well! I connect from few other computers from few locations and my computer respond well sending the site without any problems. Only my computer can't load page using external IP.
Funny, that SSH using external IP workin fine (i enabled ssh for remote access, and i can connect to router by ssh from my computer).
This is first problem. Second one i have is with dnsmasq. I was wondering if i can check how pppoe connection is going on, and how the srvices workin but when i do logread this is what i found:
Code: Select all
...
Dec 24 01:30:30 berlin daemon.warn dnsmasq-dhcp[9888]: DHCP packet received on eth0.2 which has no address
Dec 24 01:30:32 berlin daemon.warn dnsmasq-dhcp[9888]: DHCP packet received on eth0.2 which has no address
Dec 24 01:30:32 berlin daemon.warn dnsmasq-dhcp[9888]: DHCP packet received on eth0.2 which has no address
Dec 24 01:30:33 berlin daemon.warn dnsmasq-dhcp[9888]: DHCP packet received on eth0.2 which has no address
Dec 24 01:30:33 berlin daemon.warn dnsmasq-dhcp[9888]: DHCP packet received on eth0.2 which has no address
Dec 24 01:30:34 berlin daemon.warn dnsmasq-dhcp[9888]: DHCP packet received on eth0.2 which has no address
..I'm wondering, why is that?
I'm not really Linux guy, i always worked with some bsds, and windows, so if someone can help me, i will be very gratefully
Some more info that may help:
after dnsmasq restart:
Code: Select all
Dec 24 01:32:31 berlin user.notice dnsmasq: DNS rebinding protection is active, will discard upstream RFC1918 responses!
Dec 24 01:32:31 berlin user.notice dnsmasq: Allowing 127.0.0.0/8 responses
Dec 24 01:32:34 berlin daemon.info dnsmasq[10029]: started, version 2.55 cachesize 150
Dec 24 01:32:34 berlin daemon.info dnsmasq[10029]: compile time options: IPv6 GNU-getopt no-DBus no-I18N DHCP TFTP
Dec 24 01:32:34 berlin daemon.info dnsmasq-dhcp[10029]: DHCP, IP range 192.168.1.100 -- 192.168.1.250, lease time 12h
Dec 24 01:32:34 berlin daemon.info dnsmasq[10029]: using local addresses only for domain lan
Dec 24 01:32:34 berlin daemon.info dnsmasq[10029]: reading /tmp/resolv.conf.auto
Dec 24 01:32:34 berlin daemon.info dnsmasq[10029]: using nameserver 217.30.137.200#53
Dec 24 01:32:34 berlin daemon.info dnsmasq[10029]: using nameserver 217.30.129.149#53
Dec 24 01:32:34 berlin daemon.warn dnsmasq[10029]: ignoring nameserver 192.168.1.1 - local interface
Dec 24 01:32:34 berlin daemon.info dnsmasq[10029]: using local addresses only for domain lan
Dec 24 01:32:34 berlin daemon.info dnsmasq[10029]: read /etc/hosts - 3 addresses
Dec 24 01:32:34 berlin daemon.info dnsmasq-dhcp[10029]: read /etc/ethers - 1 addresses
Code: Select all
127.0.0.1 localhost.
192.168.1.1 berlin
192.168.1.108 SpitfireCode: Select all
00:13:e8:aa:aa:aa 192.168.1.108Code: Select all
config 'interface' 'loopback'
option 'ifname' 'lo'
option 'proto' 'static'
option 'ipaddr' '127.0.0.1'
option 'netmask' '255.0.0.0'
config 'interface' 'lan'
option 'ifname' 'eth0.1'
option 'type' 'bridge'
option 'proto' 'static'
option 'ipaddr' '192.168.1.1'
option 'netmask' '255.255.255.0'
option 'dns' '192.168.1.1'
config 'interface' 'wan'
option 'ifname' 'eth0.2'
option 'proto' 'pppoe'
option 'username' 'xxx'
option 'password' 'xxx'
option 'keepalive' '6 5'
config 'switch'
option 'name' 'rtl8366rb'
option 'reset' '1'
option 'enable_vlan' '1'
config 'switch_vlan'
option 'device' 'rtl8366rb'
option 'vlan' '1'
option 'ports' '1 2 3 4 5t'
config 'switch_vlan'
option 'device' 'rtl8366rb'
option 'vlan' '2'
option 'ports' '0 5t'
Code: Select all
config 'wifi-device' 'radio0'
option 'type' 'mac80211'
option 'channel' '11'
option 'macaddr' 'xxx'
option 'htmode' 'HT20'
list 'ht_capab' 'SHORT-GI-40'
list 'ht_capab' 'DSSS_CCK-40'
option 'hwmode' '11g'
config 'wifi-iface' 'apcfg'
option 'device' 'radio0'
option 'mode' 'ap'
option 'network' 'lan'
option 'ssid' 'berlin'
option 'encryption' 'psk'
option 'key' 'xxx'Code: Select all
config 'dnsmasq'
option 'domainneeded' '1'
option 'boguspriv' '1'
option 'filterwin2k' '0'
option 'localise_queries' '1'
option 'rebind_protection' '1'
option 'rebind_localhost' '1'
option 'local' '/lan/'
option 'expandhosts' '1'
option 'nonegcache' '0'
option 'authoritative' '1'
option 'readethers' '1'
option 'leasefile' '/tmp/dhcp.leases'
option 'resolvfile' '/tmp/resolv.conf.auto'
option 'domain' 'workgroup'
config 'dhcp' 'lan'
option 'interface' 'lan'
option 'start' '100'
option 'limit' '150'
option 'leasetime' '12h'
config 'dhcp' 'wan'
option 'interface' 'wanThanks for any kind of reply.
Best Regards
