Decreased File copy speed

[yousaf465]

Gargoyle router decreases the file copy speed from the network significantly I'm using gargoyle 1.6.0 on a Tp-link 741ND router.

With router installed between 2 systems.

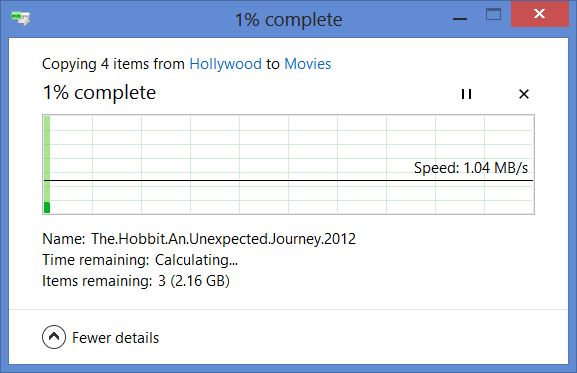

1.04 with router.JPG (40.43 KiB) Viewed 114454 times

[yousaf465]

10 views and still no reply ?

[Ragnor]

Is this copy from a device on LAN port on the TP Link to another device on LAN port on the TP Link or is it to another network connected via WAN port?

Can you post a diagram of your network setup?

[yousaf465]

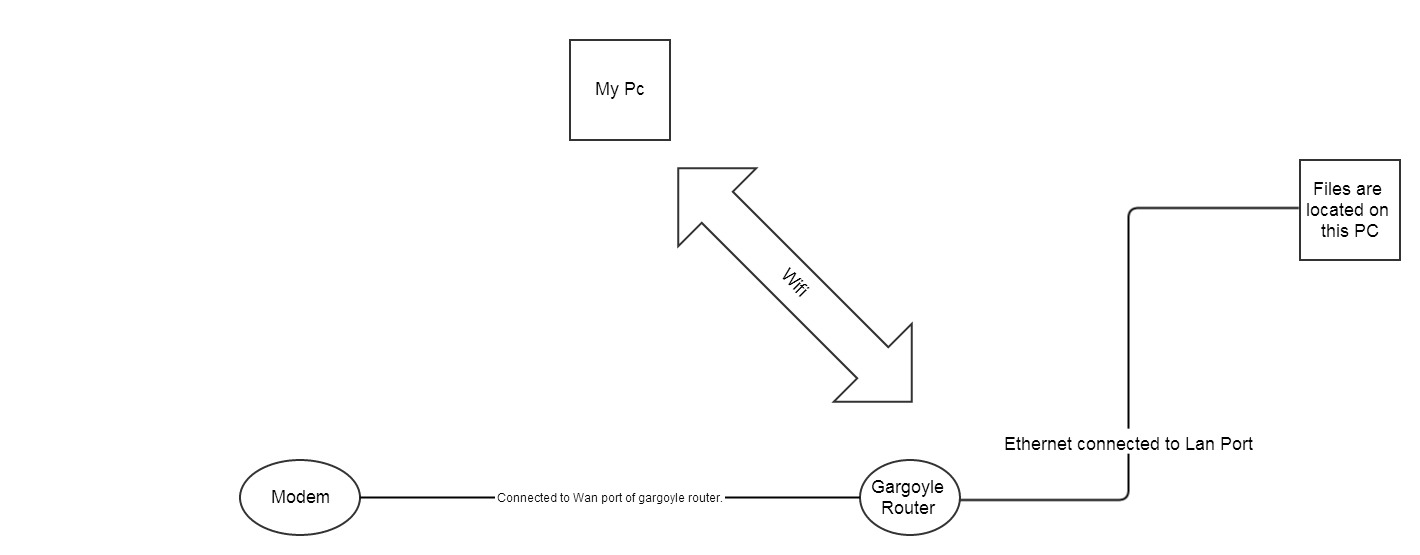

My current setup, can't get more than 3 MB/s with gargoyle router connected.

My current setup

complete_diagram (1).jpg (40.54 KiB) Viewed 114394 times

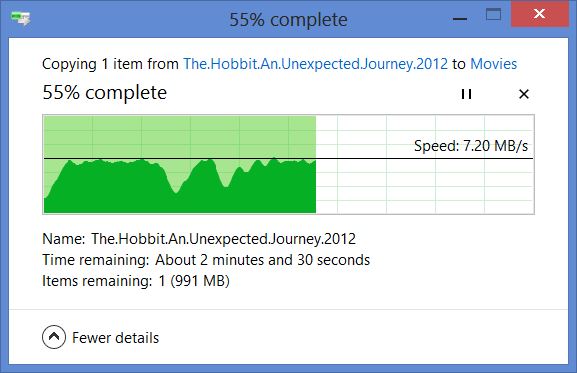

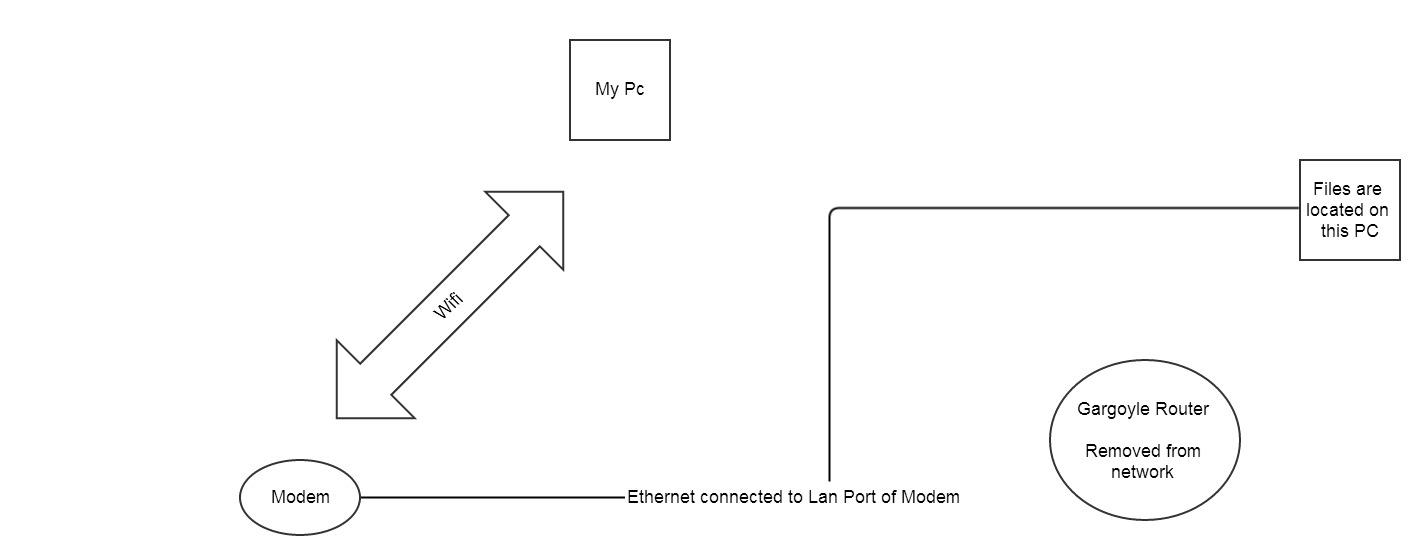

Gargoyle removed, files copy speed upto 7 Mb/s

With gargoyle removed.

complete_diagram (2).jpg (43.19 KiB) Viewed 114394 times

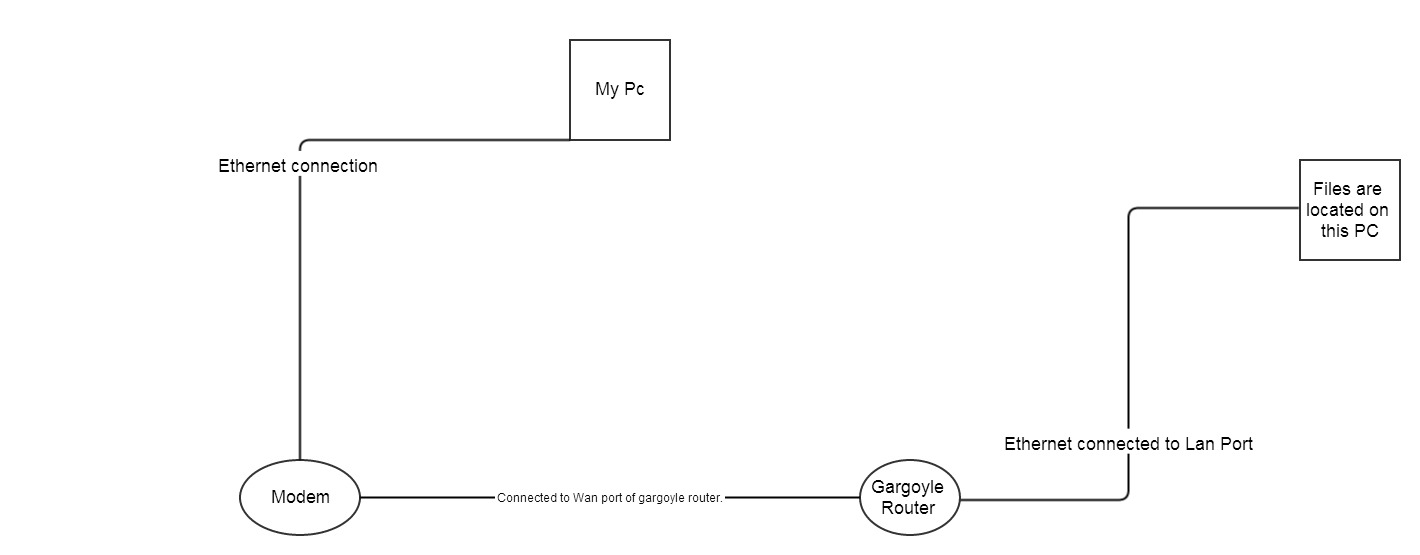

I can't access those PCs from behind the Wan port.

Can't access network from behind the Wan port.


[Ragnor]

Looks like a wifi speed issue then.

Can you post a screenshot of the current wifi setting in Gargoyle eg: mode, channel etc?

Also download the last free version of Inssider (v3.0.x) from here and run a scan when the Gargoyle wifi is running
http://www.metageek.net/support/metagee ... -archives/

[yousaf465]

Speed is fluctuating btw 355kb/s to 1.04mbps. mostly stuck at 355kb/s

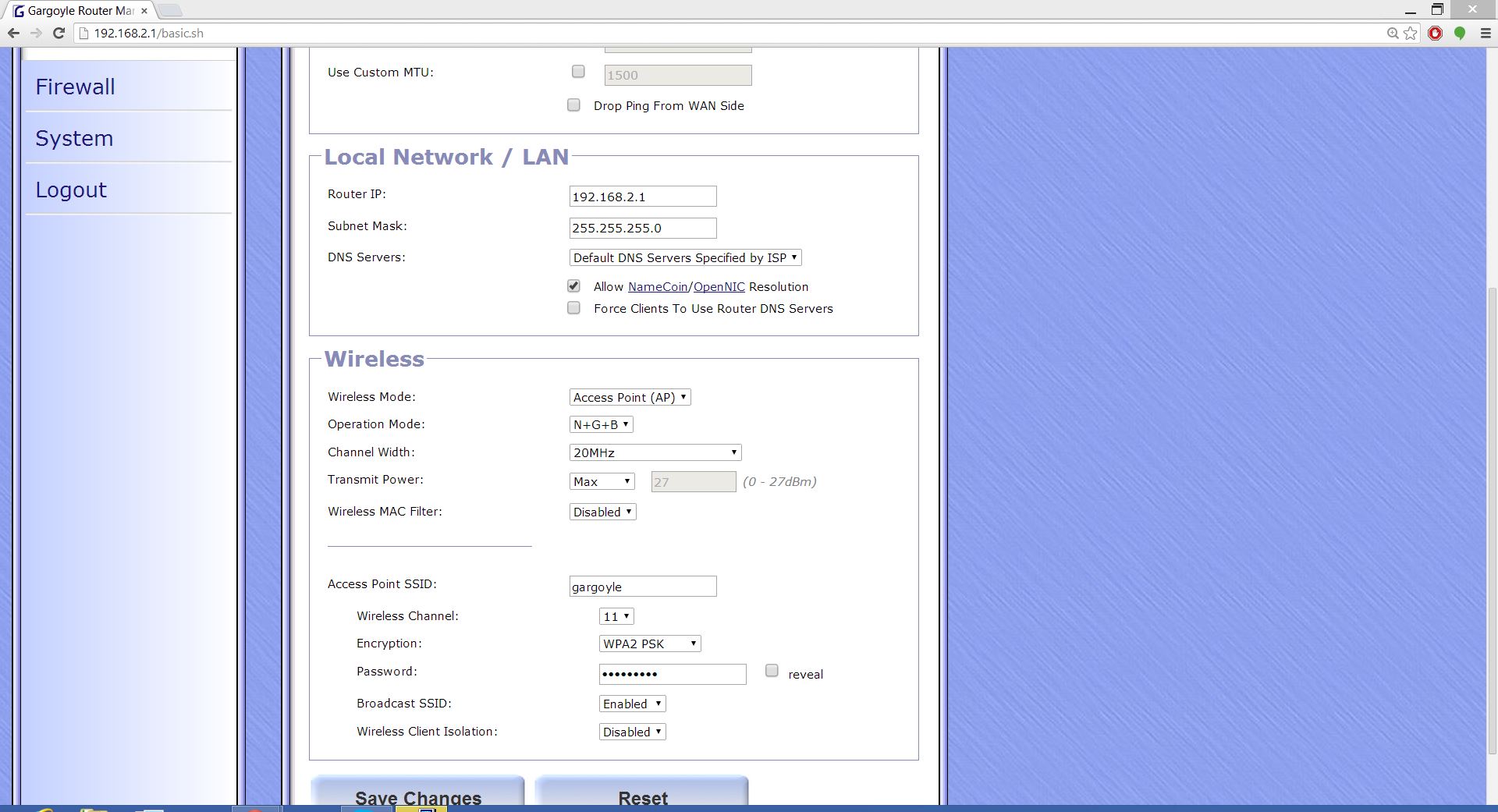

wifi setting

wifi setting.JPG (209.41 KiB) Viewed 114297 times

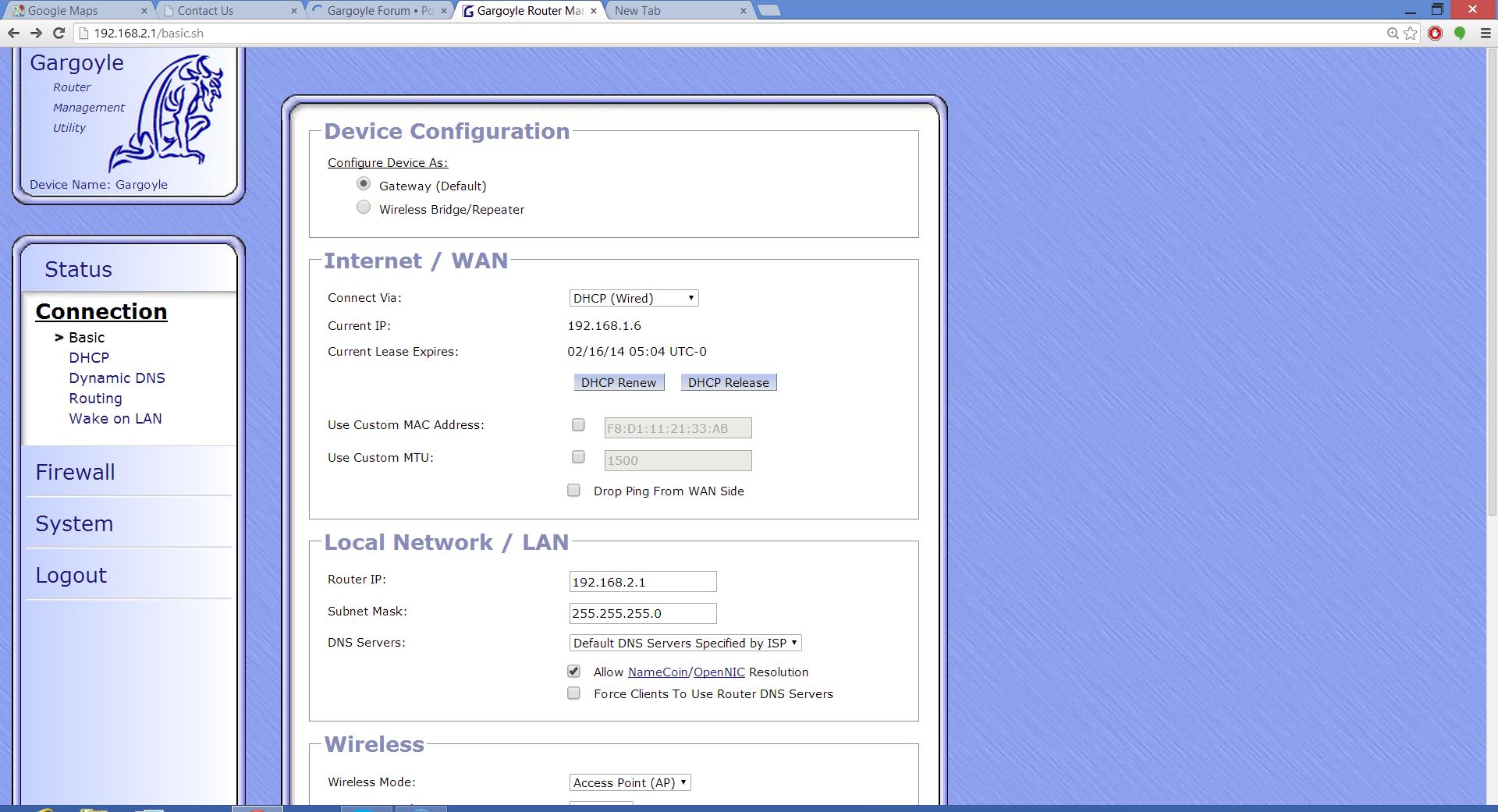

router setting

wifi setting 2.JPG (239.85 KiB) Viewed 114297 times

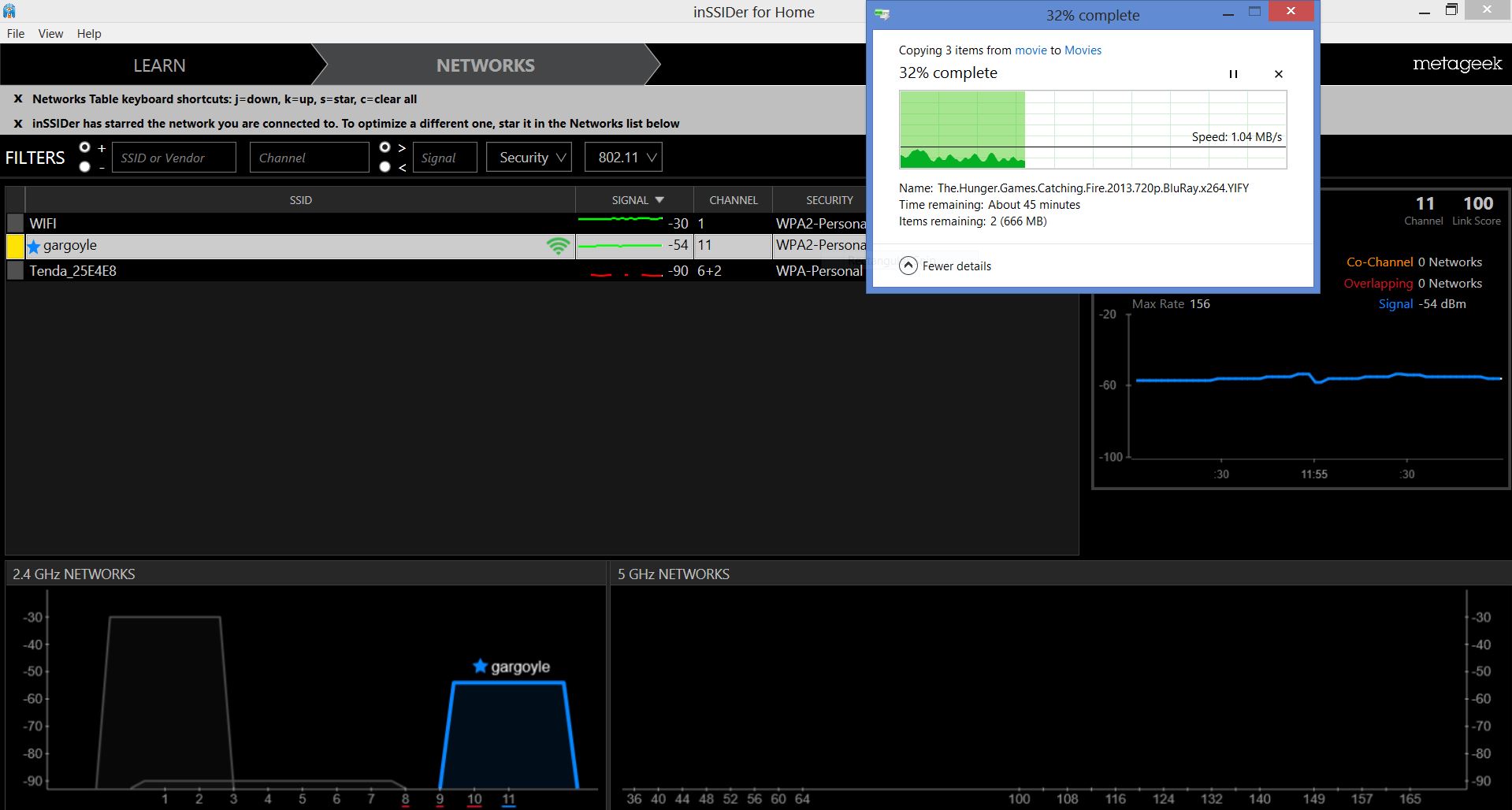

Speed is fluctuating

wifi file copy.JPG (164.08 KiB) Viewed 114297 times
