Quota problem using different dhcp for guest network
Posted: Fri Aug 28, 2015 5:52 am
by harsini
I try to use Mr Pbix instruction explained here:
http://www.gargoyle-router.com/phpbb/vi ... 8&start=10
To somehow separating guest network from main wireless and wired network.I did that successfully and guest clients get IP address from 192.168.1.128/25 while others get IP from 192.168.1.0/25. I want to limit each client's quota in guest network so I set quota like this:

But it seems there isn't any limitation for guest clients.

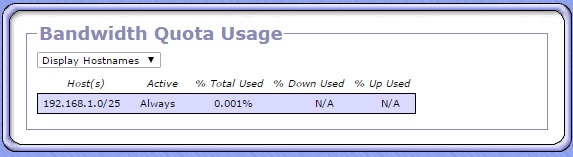

Although I have wireless client in guest Network but No quota shown related to it in status:

Can someone help me about that?
Re: Quota problem using different dhcp for guest network
Posted: Thu Sep 10, 2015 12:12 am
by majimus
Have you tried setting up and down limits as well, maybe set them to the same as the total?
Re: Quota problem using different dhcp for guest network
Posted: Thu Sep 10, 2015 4:00 am
by harsini
I found the problem.As it assumed that there is only one subnet for all interfaces so when I use "All Individual Hosts Without Explicit Quota" it wouldn't cover my new created subnet for guest network i.e 192.168.3.0/24
As I have limited number of wireless clients in my Guest Network I could set quota for each IP address in my range for example 40 quota so it covers all the clients in that range.
EDIT-As it took a period of time to get to this point.I forgot that my first post was using a single range of IP instead of double.So I should explain that the solution explained above is for situation where I use a two subnet e.g. 192.168.1.0/24 for lan and 192.168.3.0/24 for guest network.
Re: Quota problem using different dhcp for guest network
Posted: Thu Sep 10, 2015 7:16 am
by nworbnhoj
harsini wrote:I found the problem.
Well done - you have been working on this for a while!
I wonder if you might consider adding a wiki page to the doco that makes your solution easy for others to implement? Perhaps formatted as a common scenario!?
http://www.gargoyle-router.com/wiki/dok ... _scenarios
Re: Quota problem using different dhcp for guest network
Posted: Thu Sep 10, 2015 11:58 am
by majimus
I'm using distinct /24 for guest and regular hosts. I can see that the cuota is maintaining stats, however my guests are rate limited (using Qos) so they never hit the quota limit.
When time permits I will check and see what happen when they meet the limit.
harsini wrote:I found the problem.As it assumed that there is only one subnet for all interfaces so when I use "All Individual Hosts Without Explicit Quota" it wouldn't cover my new created subnet for guest network i.e 192.168.3.0/24
As I have limited number of wireless clients in my Guest Network I could set quota for each IP address in my range for example 40 quota so it covers all the clients in that range.
Re: Quota problem using different dhcp for guest network
Posted: Fri Sep 11, 2015 9:05 am
by harsini
majimus wrote:I'm using distinct /24 for guest and regular hosts. I can see that the cuota is maintaining stats, however my guests are rate limited (using Qos) so they never hit the quota limit.
When time permits I will check and see what happen when they meet the limit.
harsini wrote:I found the problem.As it assumed that there is only one subnet for all interfaces so when I use "All Individual Hosts Without Explicit Quota" it wouldn't cover my new created subnet for guest network i.e 192.168.3.0/24
As I have limited number of wireless clients in my Guest Network I could set quota for each IP address in my range for example 40 quota so it covers all the clients in that range.
Have you thought about setting static IP by clients?They could access an extra quota by setting a another IP address in the range.
We should lock the client IP address with his mac.
