Access Restrictions

Posted: Mon Jul 08, 2013 12:27 am
by manickam
i installed gargoyle in carambola http://8devices.com/carambola but i can't block any web site using configuration page -> firewall -> Restrictions, firewall config file is http://pastebin.com/nwfVZMzF please any one help me i am waiting for your valuable reply.

Re: Access Restrictions

Posted: Mon Jul 08, 2013 7:30 am
by BashfulBladder
I don't use access restrictions, but maybe you can use the webpage & this as a guide:

http://www.gargoyle-router.com/wiki/lib ... ctions.jpg

Re: Access Restrictions

Posted: Mon Jul 08, 2013 8:32 am
by manickam
hi BashfulBladder i followed that guid only

Re: Access Restrictions

Posted: Mon Jul 08, 2013 5:07 pm
by BashfulBladder
Description: scroogle
Rule Applies to: Only the Following Hosts
Enter: 192.168.1.55
Click Add
Schedule: keep existing All Day, Every Day
Restricted Resource: Uncheck All Network Access
Website URL(s): select Block Only
select Domain contains
Enter google.com & hit Add button next to Domain contains
click Add New Rule
Click Save Changes.

[a really, really long wait]

And indeed my 192.168.1.55 computer could no longer connect to google.com
The router could still ping google.com

So it does seem to work. Maybe you missed the Add buttons.

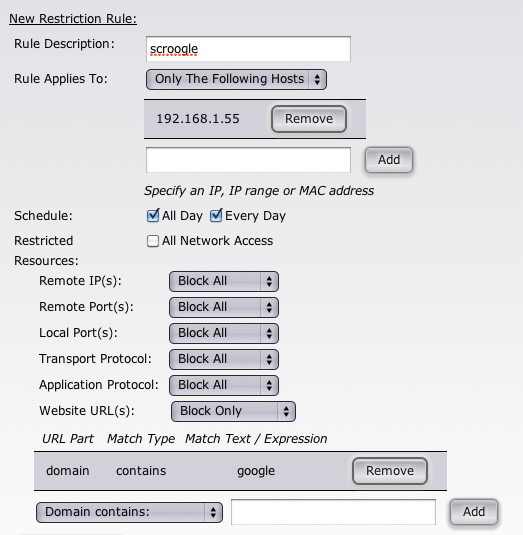

This is the picture before I clicked "Add New Rule':
Screen shot 2013-07-08 at 5.04.55 PM.png
Screen shot 2013-07-08 at 5.04.55 PM.png (86.9 KiB) Viewed 6788 times

Re: Access Restrictions

Posted: Thu Jul 11, 2013 1:15 am
by manickam
Hi BashfulBladder i tried your suggestion but i can't block the site. my Restriction Rule is http://www.tiikoni.com/tis/view/?id=15c2e9a

Re: Access Restrictions

Posted: Thu Jul 11, 2013 3:02 am
by BashfulBladder
That rule looks like 192.168.1.10 should be blocked from reaching google.
Did you click 'Save Changes' on the bottom? With that really long wait?
