Not working TOR client mode "Hidden Service Access Only"

[Spine]

Not working TOR client mode "Hidden Service Access Only"

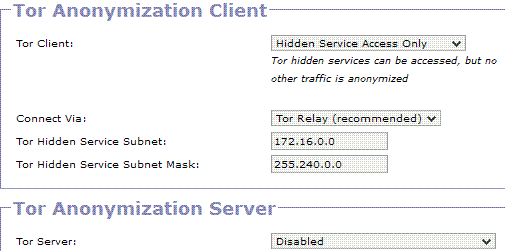

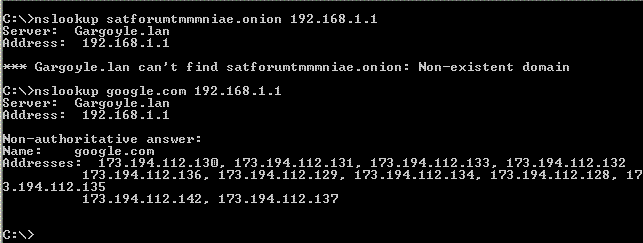

When selecting mode "Hidden Service Access Only" DNS for websites * .onion not working.

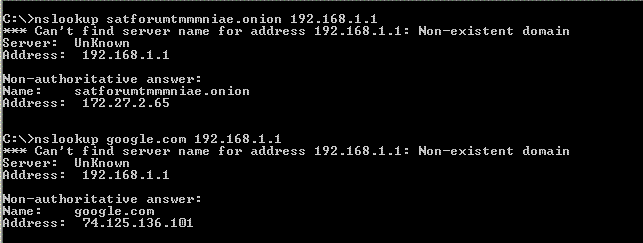

If you select operating mode "Enabled For All Hosts" then DNS is working correctly.


What needs to be fixed to properly use the TOR mode "Hidden Service Access Only"?

Router: TP-Link TL-WDR4300, Gargoyle 1.7.2
Network config:
WAN IP Address:10.7.19.107
WAN Netmask:255.255.0.0
WAN Gateway IP:10.7.19.1
WAN DNS Server(s):10.7.19.1

LAN IP Address:192.168.1.1
LAN Netmask:255.255.255.0

[nworbnhoj]

I can confirm this behaviour on TL-WDR3600 : Gargoyle 1.7.2

[Spine]

Problem solved.
The reason is that revision of 45423 completely removed support layer7 filter. https://dev.openwrt.org/changeset/45423
File tor.firewall use this feature.
To fix this, you want to change two lines in the file /etc/tor.firewall
find

Code: Select all

iptables -t nat -A tor_client -p udp --dport 53  -m layer7 --l7proto oniondns -j REDIRECT --to-ports $dns_port
iptables -t nat -A tor_client -p tcp --dport 53  -m layer7 --l7proto oniondns -j REDIRECT --to-ports $dns_port

replaced by

Code: Select all

 iptables -t nat -A tor_client -p tcp --dport 53  -m string --hex-string '|056f6e696f6e00|' --algo bm -j REDIRECT --to-ports  $dns_port
iptables -t nat -A tor_client -p udp --dport 53  -m string --hex-string '|056f6e696f6e00|' --algo bm -j REDIRECT --to-ports  $dns_port

I do not know exist TOR site names in upper-case or not.
If there are names like * .ONION or * .OnIoN you'll have to use the more common pattern in which DNS queries for myonionsite.com the same will be forwarded to the TOR.

more common pattern

Code: Select all

iptables -t nat -A tor_client -p tcp --dport 53  -m string --icase --string "onion" --algo bm -j REDIRECT --to-ports $dns_port
iptables -t nat -A tor_client -p udp --dport 53  -m string --icase --string "onion" --algo bm -j REDIRECT --to-ports $dns_port

[nworbnhoj]

Problem solved.
The reason is that revision of 45423 completely removed support layer7 filter. https://dev.openwrt.org/changeset/45423
File tor.firewall use this feature.
To fix this, you want to change two lines in the file /etc/tor. find .....

Thanks @ spine - well done.

This also means that the Layer 7 filtering options in QOS can now be removed from the Gargoyle GUI - as the Gargoyle doco preemts ...

http://www.gargoyle-router.com/wiki/doku.php?id=qos under the heading L7 Pattern Matching
